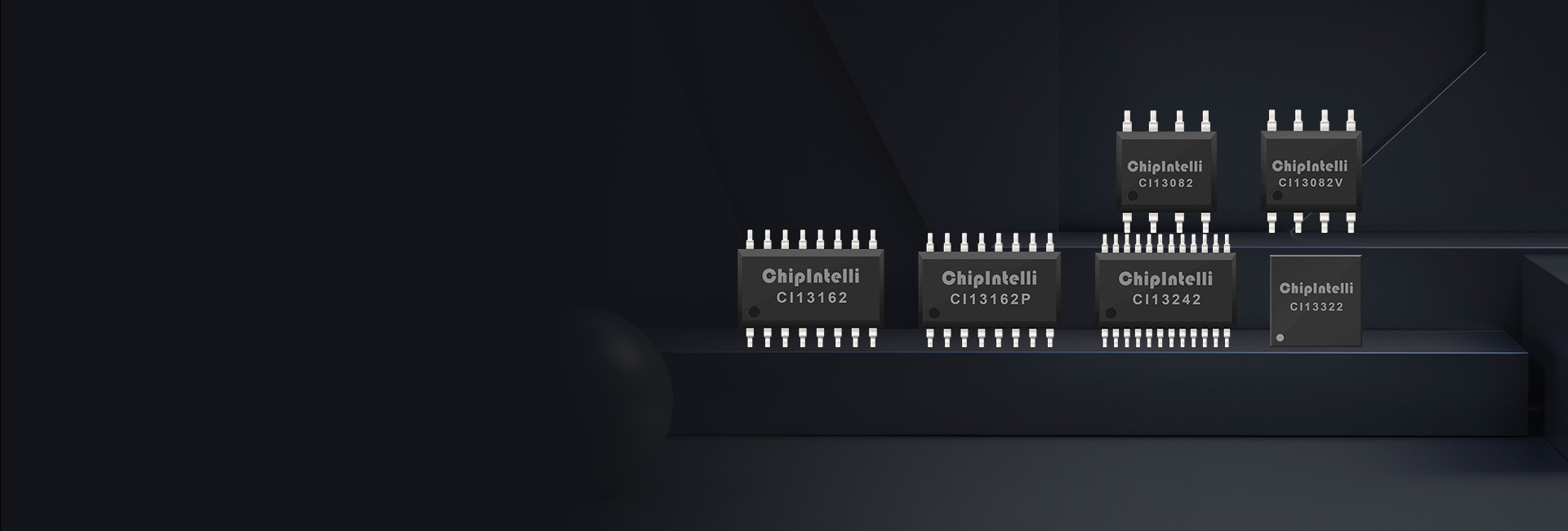

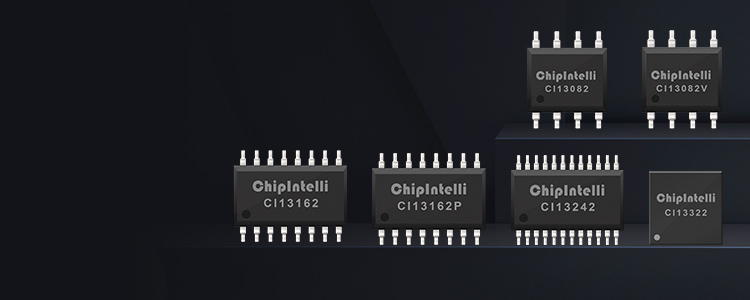

CI13LC Series

<p>The CI13LC series of chips integrates Chipintelli's proprietary&nbsp; BNPU V3.5 and CPU core. The system's clock frequency can reach up to 210MHz, with a built-in SRAM of up to 288KByte. It also integrates a PMU power management unit and an RC oscillator, as well as a single-channel high-performance low-power Audio Codec and multiple peripheral control interfaces such as UART, IIC, PWM, GPIO, etc. It supports speech recognition and speech noise reduction, providing the most cost-effective smart voice solution for products such as small appliances, lighting, toys, and more.</p>

CI13LC Series

<p>The CI13LC series of chips integrates Chipintelli's proprietary&nbsp; BNPU V3.5 and CPU core. The system's clock frequency can reach up to 210MHz, with a built-in SRAM of up to 288KByte. It also integrates a PMU power management unit and an RC oscillator, as well as a single-channel high-performance low-power Audio Codec and multiple peripheral control interfaces such as UART, IIC, PWM, GPIO, etc. It supports speech recognition and speech noise reduction, providing the most cost-effective smart voice solution for products such as small appliances, lighting, toys, and more.</p>

产品参数english
CI13322
CI13242
CI13162P
CI13162
参数对比English CI13322 CI13242 CI13162P CI13162
  • 脑神经网络处理器核(BNPU)

    · BNPU V3.5

    · Support offline NN acceleration calculation

    · VAD/low-power wake-up

    · Hardware acceleration for speech signal processing

    · BNPU V3.5

    · Support offline NN acceleration calculation

    · VAD/low-power wake-up

    · Hardware acceleration for speech signal processing

    · BNPU V3.5

    · Support offline NN acceleration calculation

    · VAD/low-power wake-up

    · Hardware acceleration for speech signal processing

    · BNPU V3.5

    · Support offline NN acceleration calculation

    · VAD/low-power wake-up

    · Hardware acceleration for speech signal processing

  • 语音功能

    · Support offline NN acceleration calculation

    · VAD/low-power wake-up

    · Hardware acceleration for speech signal processing

    · Front end signal processing

    √ Support local speech recognition

    √ Support adaptive noise reduction

    · Support self-learning of local command words

    · Offline far-field speech recognition, supporting 300 command words

    · Support offline NN acceleration calculation

    · VAD/low-power wake-up

    · Hardware acceleration for speech signal processing

    · Front end signal processing

    √ Support local speech recognition

    √ Support adaptive noise reduction

    · Support self-learning of local command words

    · Offline far-field speech recognition, supporting 300 command words

    · Support offline NN acceleration calculation

    · VAD/low-power wake-up

    · Hardware acceleration for speech signal processing

    · Front end signal processing

    √ Support local speech recognition

    √ Support adaptive noise reduction

    · Support self-learning of local command words

    · Offline far-field speech recognition, supporting 300 command words

    · Support offline NN acceleration calculation

    · VAD/low-power wake-up

    · Hardware acceleration for speech signal processing

    · Front end signal processing

    √ Support local speech recognition

    √ Support adaptive noise reduction

    · Support self-learning of local command words

    · Offline far-field speech recognition, supporting 300 command words

  • CPU主频

    · The CPU clock speed can reach 210MHz

    · The CPU clock speed can reach 210MHz

    · The CPU clock speed can reach 210MHz

    · The CPU clock speed can reach 210MHz

  • 存储

    · Built in 288B SRAM

    · Built in 2MB FLASH

    · Built in 288B SRAM

    · Built in 2MB FLASH

    · Built in 288B SRAM

    · Built in 2MB FLASH

    · Built in 288KB SRAM

    · Built in 2MB FLASH

  • 集成度

    · Built in high-precision RC oscillator

    · Support external crystal oscillators

    · Built in high-precision RC oscillator

    · Support external crystal oscillators

    · Built in high-precision RC oscillator

    · Integrated PA


    · Built in high-precision RC oscillator

    · Support external crystal oscillators

  • 音频通道

    · Built-in high-performance, low-power Audio Codec, supporting single-channel ADC sampling and single-channel DAC playback

    · Supports ALC function

    · Supports sampling rates of 8kHz/16kHz/24kHz/32kHz/44.1kHz/48kHz

    · Built-in high-performance, low-power Audio Codec, supporting single-channel ADC sampling and single-channel DAC playback

    · Supports ALC function

    · Supports sampling rates of 8kHz/16kHz/24kHz/32kHz/44.1kHz/48kHz

    · Built-in high-performance, low-power Audio Codec, supporting single-channel ADC sampling and single-channel DAC playback

    · Supports ALC function

    · Supports sampling rates of 8kHz/16kHz/24kHz/32kHz/44.1kHz/48kHz

    · Built-in high-performance, low-power Audio Codec, supporting single-channel ADC sampling and single-channel DAC playback

    · Supports ALC function

    · Supports sampling rates of 8kHz/16kHz/24kHz/32kHz/44.1kHz/48kHz

  • 外设接口

    · 3-channel UART interface, supporting a maximum baud rate of 3Mbps

    · 1-channel I2S interface

    · 1-channel I2C interface, capable of being externally connected to IIC devices for expansion

    · 4-channel PWM interface, suitable for direct driving in both lighting control and motor applications

    · Supports 19 GPIO ports, which can be used as a main control IC; each GPIO port can be configured with an interrupt function and supports configurable pull-up and pull-down settings

    · 3-channel UART interface, supporting a maximum baud rate of 3Mbps

    · 1-channel I2S interface

    · 1-channel I2C interface, capable of being externally connected to IIC devices for expansion

    · 4-channel PWM interface, suitable for direct driving in both lighting control and motor applications

    · Supports 13 GPIO ports, which can be used as a main control IC; each GPIO port can be configured with an interrupt function and supports configurable pull-up and pull-down settings

    · 2-channel UART interface, supporting a maximum baud rate of 3Mbps

    · 1-channel I2C interface, capable of being externally connected to IIC devices for expansion

    · 3-channel PWM interface, suitable for direct driving in both lighting control and motor applications

    · 2-channel UART interface, supporting a maximum baud rate of 3Mbps

    · 1-channel I2C interface, capable of being externally connected to IIC devices for expansion

    · 3-channel PWM interface, suitable for direct driving in both lighting control and motor applications

    · Supports 6 GPIO ports, which can be used as a main control IC; each GPIO port can be configured with an interrupt function and supports configurable pull-up and pull-down settings

  • 封装

    · Packaging form: QFN32

    · Operating temperature range: -40℃ to 85℃

    · Packaging form: SSOP24

    · Operating temperature range: -40℃ to 85℃

    · Packaging form: SOP16

    · Operating temperature range: -40℃ to 85℃

    · Packaging form: SOP16

    · Operating temperature range: -40℃ to 85℃

产品参数english
CI13082V
参数对比English CI13082V
  • 脑神经网络处理器核(BNPU)

    · BNPU V3.5

    · Support offline NN acceleration calculation

    · VAD/low-power wake-up

    · Hardware acceleration for speech signal processing

  • 语音功能

    · Support offline NN acceleration calculation

    · VAD/low-power wake-up

    · Hardware acceleration for speech signal processing

    · Front end signal processing

    √ Support local speech recognition

    √ Support adaptive noise reduction

    · Support self-learning of local command words

    · Offline far-field speech recognition, supporting 300 command words

  • CPU主频

    · The CPU clock speed can reach 210MHz

  • 存储

    · Built in 288B SRAM

    · Built in 2MB FLASH

  • 集成度

    · Built in high-precision RC oscillator

  • 音频通道

    · Built-in high-performance, low-power Audio Codec, supporting single-channel ADC sampling and single-channel DAC playback

    · Supports ALC function

    · Supports sampling rates of 8kHz/16kHz/24kHz/32kHz/44.1kHz/48kHz

  • 外设接口

    · 1-channel UART interface, supporting a maximum baud rate of 3Mbps

    · 1-channel I2C interface, capable of being externally connected to IIC devices for expansion

    · 4-channel PWM interface, suitable for direct driving in both lighting control and motor applications

    · Supports 4 GPIO ports, which can be used as a main control IC; each GPIO port can be configured with an interrupt function and supports configurable pull-up and pull-down settings

  • 封装

    · Packaging form: SOP8

    · Operating temperature range: -40℃ to 85℃
