Fitting

针对芯片和模块量产时的固件烧录与功能测试，我们开发了专用手动和自动烧录工具。手动烧录采用离线烧录板，通过USB Type-C供电并集成串口，支持多型号芯片的固件烧录及基础功能验证，适用于小批量调试。自动烧录采用机台转接板+离线烧录器组合，适用于大批量量产，全面覆盖从研发验证到规模量产的烧录需求。

Burn-in Adapter Board

烧录器使用手册

机台自动烧录芯片固件

支持 SOP8 、SOP16、SSOP24封装的芯片，配合离线烧录器实现芯片的量产烧录。

Accessory Name	Description	Compatible Chip

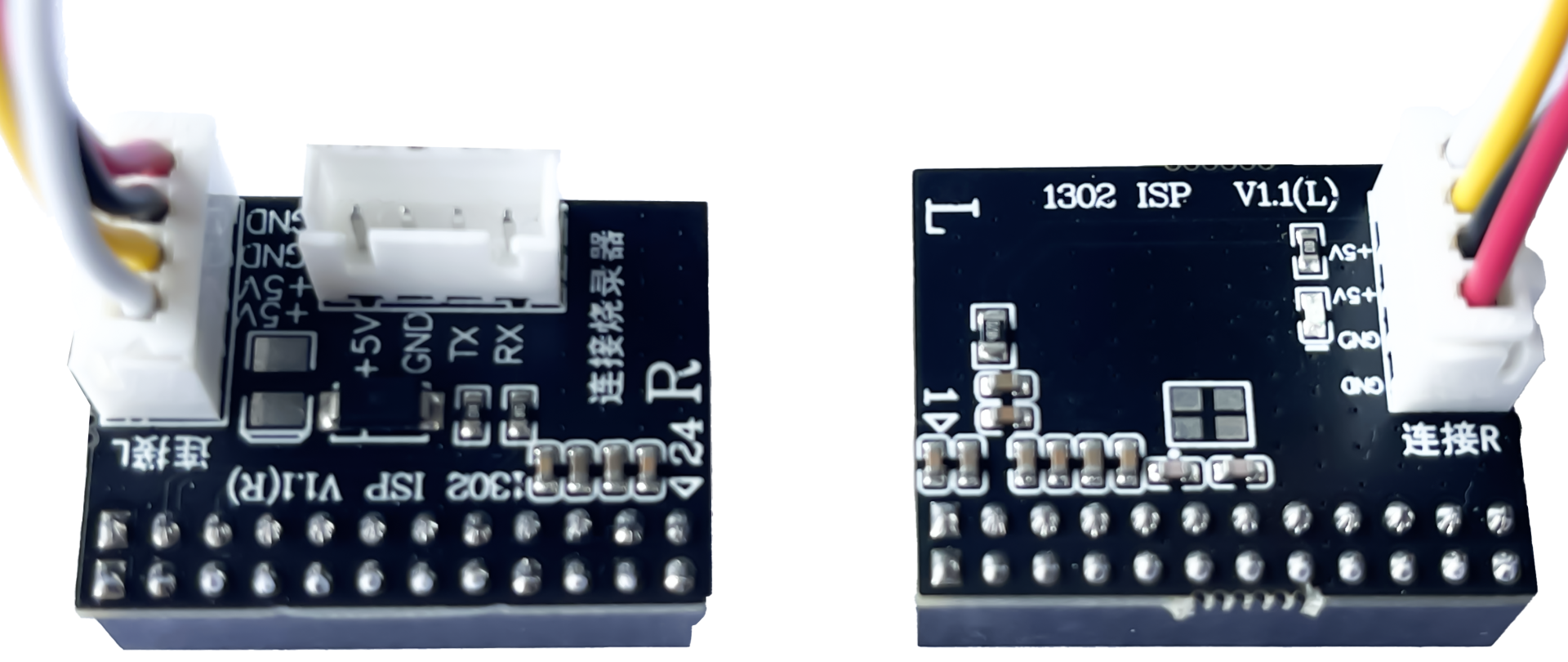

CI130X Burn-in Adapter Board	Dedicated adapter board for CI130X series,consists of left and right boards with power capacitors and crystal oscillator. Forms a firmware programming system with the chip,enabling mass production programming when used with offline programmers.	CI1302 CI1303
CI131X Burn-in Adapter Board	Dedicated adapter board for CI131X series,consists of left and right boards with power capacitors and crystal oscillator. Forms a firmware programming system with the chip,enabling mass production programming when used with offline programmers.	CI1312
CI13082V Burn-in Adapter Board	Dedicated adapter board for CI13082V,consists of left and right boards with power capacitors and crystal oscillator. Forms a firmware programming system with the chip,enabling mass production programming when used with offline programmers.	CI13082V
CI1316X Burn-in Adapter Board	Dedicated adapter board for CI1316X series,consists of left and right boards with power capacitors and crystal oscillator. Forms a firmware programming system with the chip,enabling mass production programming when used with offline programmers.	CI13162
CI1316XP Burn-in Adapter Board	Dedicated adapter board for CI13162P,consists of left and right boards with power capacitors and crystal oscillator. Forms a firmware programming system with the chip,enabling mass production programming when used with offline programmers.	CI13162P
CI1324X Burn-in Adapter Board	Dedicated adapter board for CI1324X series,consists of left and right boards with power capacitors and crystal oscillator. Forms a firmware programming system with the chip,enabling mass production programming when used with offline programmers.	CI13242
CI2316X Burn-in Adapter Board	Dedicated adapter board for CI2316X series,consists of left and right boards with power capacitors and crystal oscillator. Forms a firmware programming system with the chip,enabling mass production programming when used with offline programmers.	CI23162

Programmer Board

烧录器使用手册

手动烧录芯片固件

支持对SOP8、SOP16、SSOP24封装的芯片进行手动烧录。

Accessory Name	Description	Compatible Chip
CI130X Offline Programmer	1. Offline programmer for CI130X series,supports programming CI1302 and CI1303 chips;<br>2. Primarily for programming,with basic functionality verification after programming;<br>3. Powered by USB 5V Type-C,onboard UART.	CI1302 CI1303
CI131X Offline Programmer	1. Supports programming CI1312 chip;<br>2. Primarily for programming with basic functionality verification after programming;<br>3. Powered by USB 5V Type-C,onboard UART.	CI1312
CI13082V Offline Programmer	1. Supports programming CI13082V chip;<br>2. Primarily for programming with basic functionality verification after programming;<br>3. Powered by USB 5V Type-C,onboard UART.	CI13082V
CI2316X Offline Programmer	1. Supports programming CI23162 chip;<br>2. Primarily for programming with basic functionality verification after programming;<br>3. Powered by USB 5V Type-C,onboard UART.	CI23162

Programmer

烧录器使用手册

离线烧录器

配合离线烧录板或机台转接板实现手动芯片固件烧录或自动芯片固件烧录。

Fitting Image	Accessory Name	Buy	Description	Compatible Chip

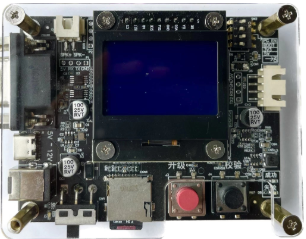

	Offline Programmer		1. The offline programmer is specifically developed for programming Chipintelli voice chips,supporting all models of voice chips.<br>2. Chip programming supports two modes: manual programming and automated machine programming. Users can choose based on their needs. Manual programming requires purchasing our offline programming board or voice module. Machine programming requires purchasing our dedicated model adapter board.	CI1302 CI1303 CI1306 CI1312 CI13082V CI13162 CI13162P CI13242 CI13322 CI23162 CI23242

Fitting Image

Accessory Name

Buy

Description

Compatible Chip

Offline Programmer

1. The offline programmer is specifically developed for programming Chipintelli voice chips,supporting all models of voice chips.<br>2. Chip programming supports two modes: manual programming and automated machine programming. Users can choose based on their needs. Manual programming requires purchasing our offline programming board or voice module. Machine programming requires purchasing our dedicated model adapter board.

Test Fixture

治具使用手册

自动烧录和测试模块固件

我司为模块量产时的固件烧录和功能测试开发了专用的自动化烧录测试治具，用户也可以根据手册方法，自行开发治具使用。

Fitting Image	Accessory Name	Buy	Description	Compatible Chip

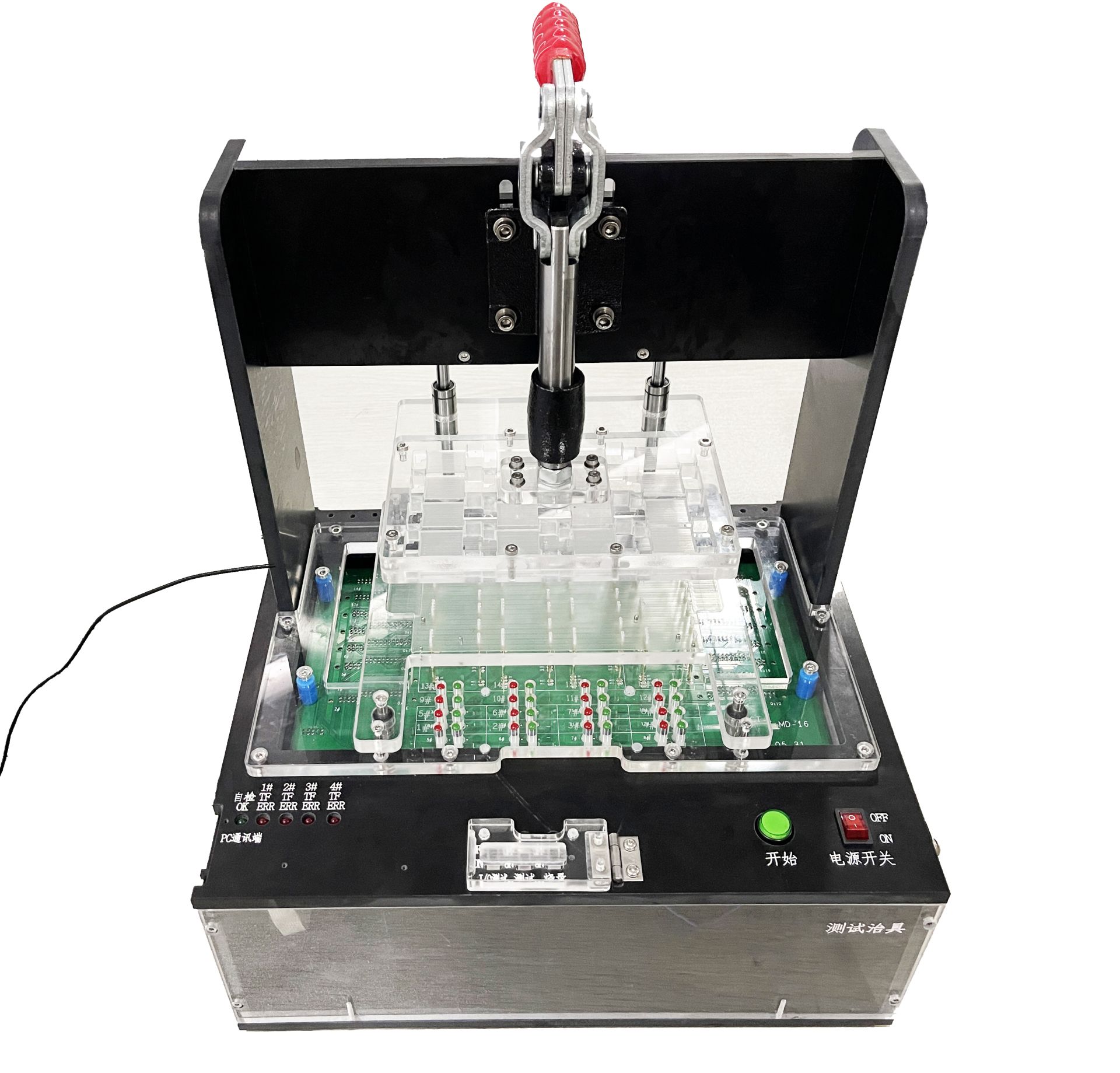

	Test Fixture		Test fixtures are used for programming and testing voice modules. We have developed corresponding fixtures for different standard modules. Users can also develop custom fixtures according to the manual. The fixture enables automated programming and testing in one go,improving production efficiency while ensuring all functions of the voice module (including electrical functions,voice recognition,and voice broadcast) work properly. For purchasing fixtures,please contact our business team at support@chipintelli.com.	CI1302 CI1303 CI1306 CI1312 CI13082V CI13162 CI13162P CI13242 CI13322 CI23162 CI23242

Fitting Image

Accessory Name

Buy

Description

Compatible Chip

Test Fixture

Test fixtures are used for programming and testing voice modules. We have developed corresponding fixtures for different standard modules. Users can also develop custom fixtures according to the manual. The fixture enables automated programming and testing in one go,improving production efficiency while ensuring all functions of the voice module (including electrical functions,voice recognition,and voice broadcast) work properly. For purchasing fixtures,please contact our business team at support@chipintelli.com.
