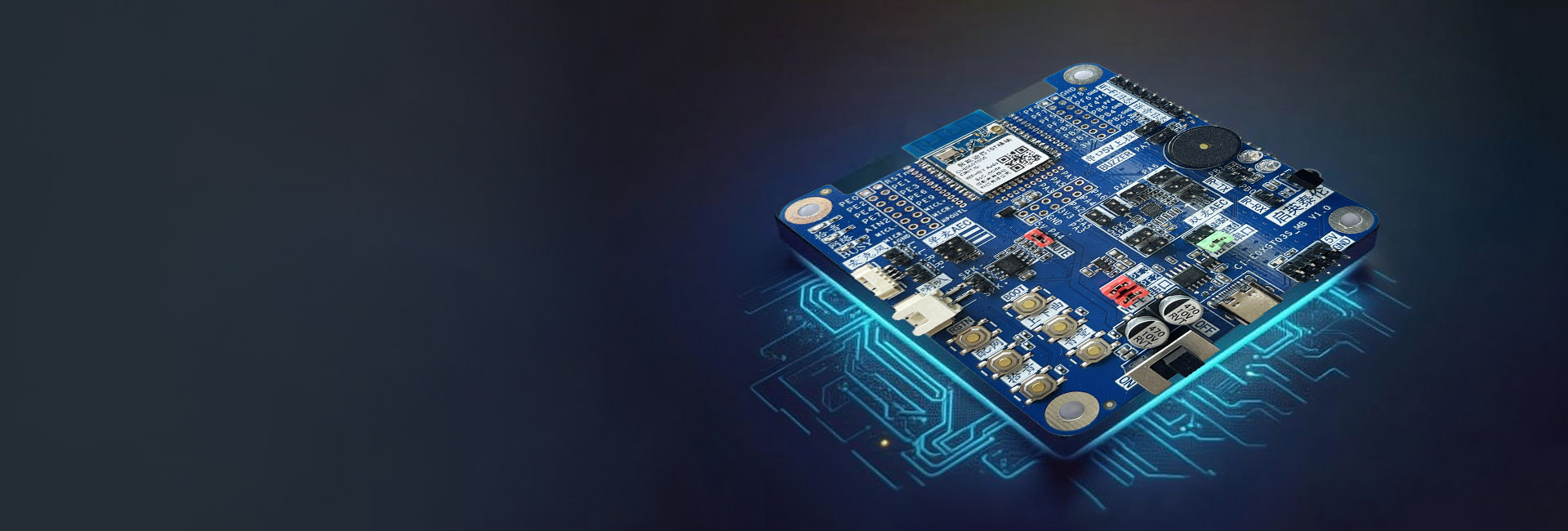

启英泰伦提供基于AI语音芯片及模块配套的开发板套件，包含完整硬件接口（如麦克风阵列、喇叭、USB、UART、PWM、GPIO等）和标准语音固件。该套件开箱即用，用户通过简单连接即可快速体验语音唤醒、语音识别及控制功能，并可直接通过串口调试工具进行二次开发评估，帮助开发者高效地实现其语音应用。

CI13XX Series

硬件设计指南

高性价比自然说

CI13XX系列开发板包含三种开发板，分别对应CI1301、CI1302、CI1303、CI1306和CI1311、CI1312芯片的开发，开发板可以实现语音识别方案的开发、通讯方案开发、接口控制方案开发，用户根据所需芯片型号选择对应开发板。

Development Board Model	Development Board Description	Interfaces	Dimensions (mm)	Development Board Status
CI1301&CI1302&CI1303 Dev Board	The CI1301&CI1302&CI1303 Development Board includes module boards (CI-D03GS02S, CI-D02GS02S) and a universal baseboard (CI-B02-MB), enabling voice recognition demo, interface expansion, and firmware development.	MIC, Speaker, UART	72×60	Mass Production
CI1306 Dev Board	The CI1306 Development Board (specific model: CI-D06GT01D) is based on the CI1306 chip, allowing for the debugging of CI1306 chip-related functions. The board supports multiple power input and code download methods, with rich interfaces and convenient development. It features dual MIC input, single speaker output, USB-to-UART, external DCDC power supply, and AEC circuit.	IIS, UART, RGB LED control, IIC, OLED, IR, BUZZER, DMIC, ADC-KEY	90×90	Mass Production
CI-D1XGS08J Dev Board	The CI-D1XGS08J is based on the CI1312 chip, serving as a voice recognition module and development board. It allows for the debugging of CI1312 chip-related functions, supporting multiple power input and code download methods, with rich interfaces and convenient development.	MIC, Speaker, UART	40×30	Mass Production

CI13LC Series

硬件设计指南

高性价比指令识别

CI13LC系列开发板包含5种开发板，分别对应CI13081、CI13082、CI13162P、CI13161、CI13162、CI13241、CI13242、CI13332芯片的开发，开发板可以实现语音识别方案的开发、通讯方案开发、接口控制方案开发，用户根据所需芯片型号选择对应开发板。

Development Board Model	Development Board Description	Interfaces	Dimensions (mm)	Development Board Status
CI-F08XGS02J Dev Board	The CI-F08XGS02J is based on the CI13082V chip, serving as a voice recognition module and development board. It allows for the debugging of CI13082V chip-related functions, supporting multiple power input and code download methods, with rich interfaces and convenient development.	MIC, Speaker, UART	40×30	Mass Production
CI-F16XGS02J Dev Board	The CI-F16XGS02J is based on the CI13162 chip, serving as a voice recognition module and development board. It allows for the debugging of CI13162 chip-related functions, supporting multiple power input and code download methods, with rich interfaces and convenient development.	MIC, Speaker, UART	40×30	Mass Production
CI1324X Dev Board	The CI1324X Development Board includes module boards (CI-F24XGS01S) and a universal baseboard (CI-B02-MB), enabling basic voice recognition demo, interface expansion, and firmware development.	MIC, Speaker, IIS, UART, RGB LED control, IIC, OLED, IR, BUZZER	40×30	Mass Production
CI-H16XGS01J Dev Board	The CI-H16XGS01J is based on the CI13162P chip, serving as a voice recognition module and development board. It allows for the debugging of CI13162P chip-related functions, supporting multiple power input and code download methods, with rich interfaces and convenient development.	MIC, Speaker, UART	40×30	Mass Production
CI13322 Dev Board	The CI13322 Development Board (specific model: CI-F32XGT01D) is based on the CI13322 chip, allowing for the debugging of CI13322 chip-related functions. The board supports multiple power input and code download methods, with rich interfaces and convenient development. It features single MIC input, single speaker output, USB-to-UART, and external DCDC power supply.	IIS, UART, RGB LED control, IIC, OLED, IR, BUZZER	85×72	Mass Production

CI230X Series

硬件设计指南

高性能语音AIoT

CI230X系列开发板包含2种开发板，分别对应CI2305、CI2306芯片的开发，开发板可以实现语音识别方案的开发、WiFi通讯、串口通讯方案开发、接口控制方案开发，用户根据所需芯片型号选择对应开发板。

Board Image	Development Board Model	User Guide	Buy	Development Board Description	Interfaces	Dimensions (mm)	Development Board Status	Compatible Module
	CI230X Dev Board			The CI230X Development Board is based on the CI2305 and CI2306 chips, allowing for the debugging of chip-related functions. The board supports multiple power input and code download methods, with rich interfaces and convenient development. It features dual MIC input, single speaker output, USB-to-UART, external DCDC power supply, AEC circuit, IR receiver, RGB LED, and multifunction buttons.	IIS, UART, RGB LED control, IIC, IR, BUZZER, ADC-KEY	90×60	Mass Production
	CI230X (LCD) Dev Board			The CI230X (LCD) Development Board is based on the CI2305 and CI2306 chips, allowing for the debugging of chip-related functions. The board supports multiple power input and code download methods, with rich interfaces and convenient development. It features dual MIC input, single speaker output, USB-to-UART, external DCDC power supply, AEC circuit, IR receiver, RGB LED, multifunction buttons, and SPI interface, with optional LCD screen.	IIS, UART, RGB LED control, IIC, IR, BUZZER, ADC-KEY, SPI	85×72	Mass Production

CI23LC Series

硬件设计指南

高性价比语音BLE

CI23LC系列开发板包含2种开发板，分别对应CI2316X、CI2324X芯片的开发，开发板可以实现语音识别方案的开发、BLE通讯、串口通讯方案开发，用户根据所需芯片型号选择对应开发板。

Board Image	Development Board Model	User Guide	Buy	Development Board Description	Interfaces	Dimensions (mm)	Development Board Status	Compatible Module
	CI-G16XGS02J Dev Board			The CI-G16XGS02J Development Board is based on the CI23162 chip, serving as a voice recognition module and development board with BLE functionality. It allows for the debugging of CI23162 chip-related functions, with rich interfaces and convenient development. It features single MIC input and single speaker output.	MIC in, Speaker out, UART	40×30	Mass Production
	CI-G242GS02J Dev Board			The CI-G242GS02J Development Board is based on the CI23242 chip, serving as a voice recognition module and development board with BLE functionality. It allows for the debugging of CI23242 chip-related functions, with rich interfaces and convenient development. It features single MIC input and single speaker output.	MIC in, Speaker out, UART	40×30	Mass Production

CI112X Series

硬件设计指南

低功耗

CI-B02-MB开发板配合子版实现CI1122芯片的开发，开发板接口丰富，可以实现简便开发。配置双麦输入和单喇叭输出、USB转串口、AEC电路。

Board Image	Development Board Model	User Guide	Buy	Development Board Description	Interfaces	Dimensions (mm)	Development Board Status	Compatible Module
	CI-B02-MB Dev Board			The CI-B02-MB Development Board enables the external expansion and application of CI1103, and CI1122 chip-related voice modules, as well as the design verification of user-developed firmware.	MIC in, Speaker out, UART	72×60	Mass Production

CI110X Series

硬件设计指南

高性价比

CI-B02-MB开发板配合子版实现CI110X系列芯片的开发，开发板接口丰富，可以实现简便开发。配置双麦输入和单喇叭输出、USB转串口、AEC电路。

Board Image	Development Board Model	User Guide	Buy	Development Board Description	Interfaces	Dimensions (mm)	Development Board Status	Compatible Module
	CI-B02-MB Dev Board			The CI-B02-MB Development Board enables the external expansion and application of CI1103, and CI1122 chip-related voice modules, as well as the design verification of user-developed firmware.	MIC in, Speaker out, UART	72×60	Mass Production
